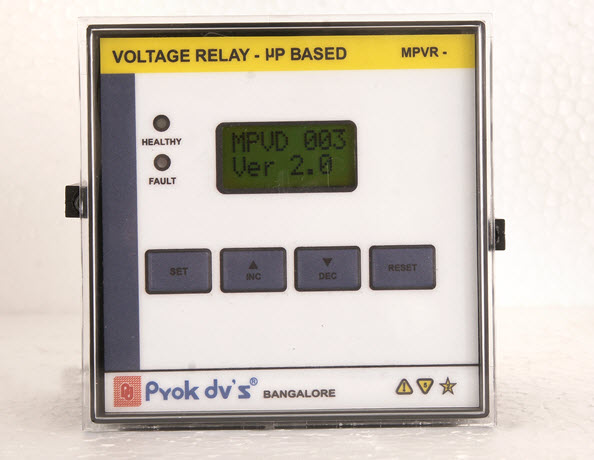

Catalogue User Manual Connection Diagram LV Voltage Relay Model No : MPVR-03 Applications : Protection of Synchronous and induction motor of any HP Rating Protection of Generators, AMF switched Board Transformer Feeder Panel Distribution Boards Voltage Regulators Protection of UPS and Single phase application Specification User friendly setting Parameters Monitor the line to line voltages continuously Built in on delay and trip delay time settings Field configurable reset gap voltage Direct display of line to line voltages in 3 Phase models Set value of Under Voltage (UV) and Over Voltage (OV) in terms of Set voltage directly Phase fail and phase reversal protection in 3 phase models Indication of faults through LED and LCD Independent potential free output contacts for Under Voltage (UV)/ph. fail ,Ph reversal and Over Voltage(OV)
